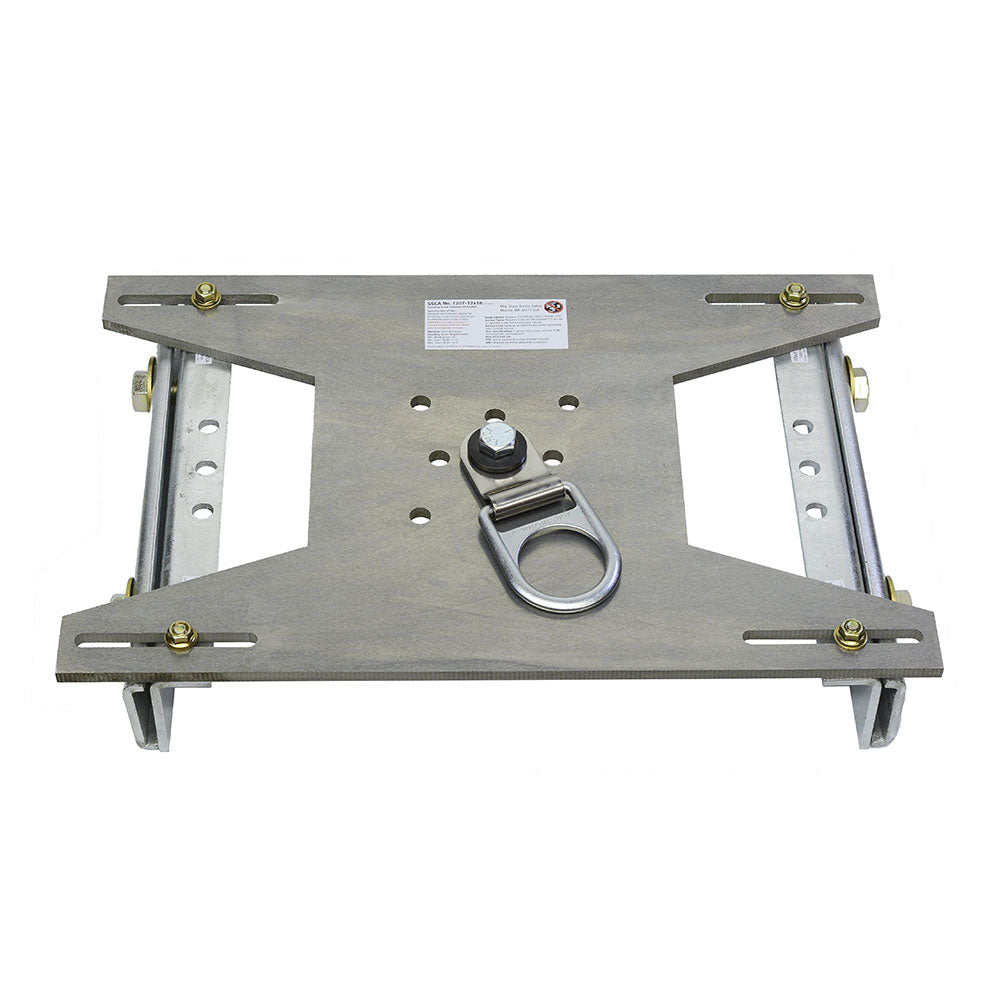

* This complete anchor system includes an aluminum base plate, 2 seam clamps and a swivel d-ring for attachment.
* Installs with only 4 bolts and is compatible with a wide range of panel widths and profiles.
* Designed to attach to most seam profiles with 4 clamps. Each clamp is attached to the seam with sst hex socket screws.
* 3rd party tested to withstand a 5,000lb force in the specified load direction.
* Standing Seam Anchor is available in 3 lightweight aluminum base plate sizes to fit panel seam widths of 8-1/2” up to 26-1/2” wide.
Base Plate Sizes
| Plate Size | Panel Seams O.C. |

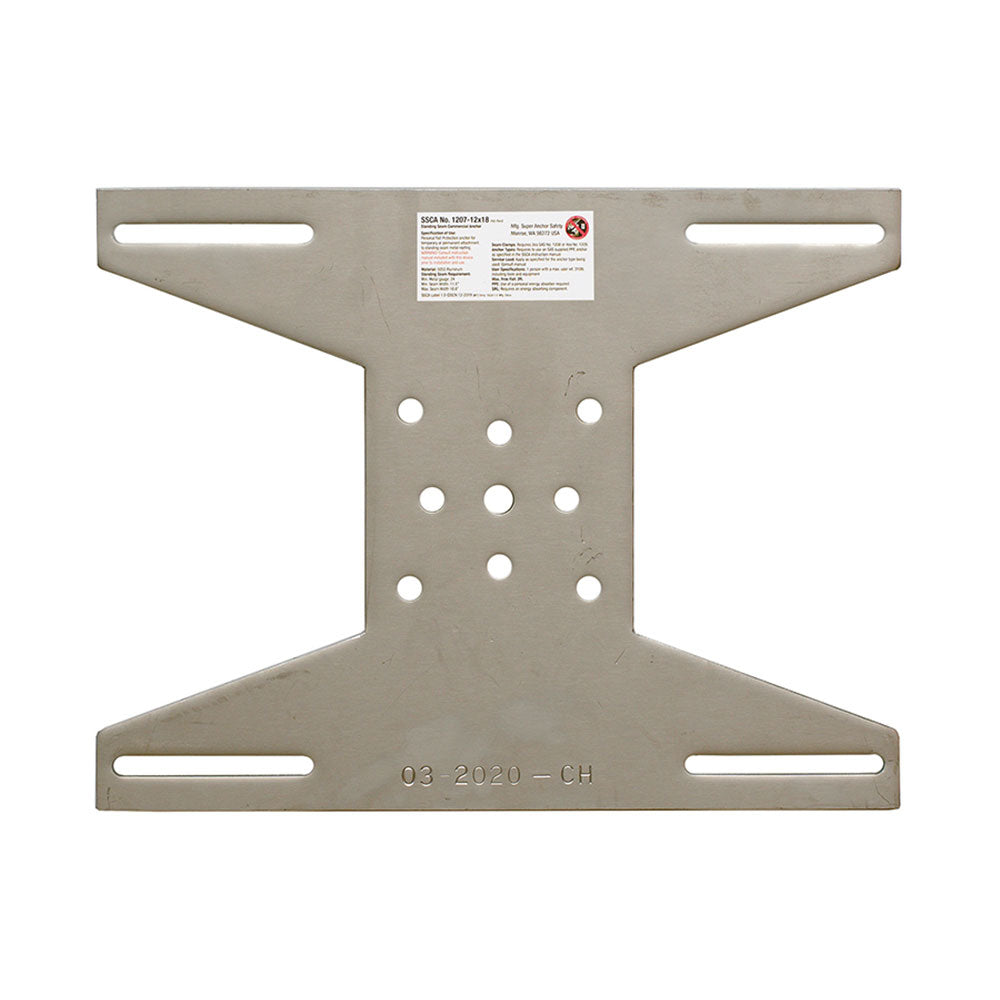

| Small Base Plate | 12” up to 18” |

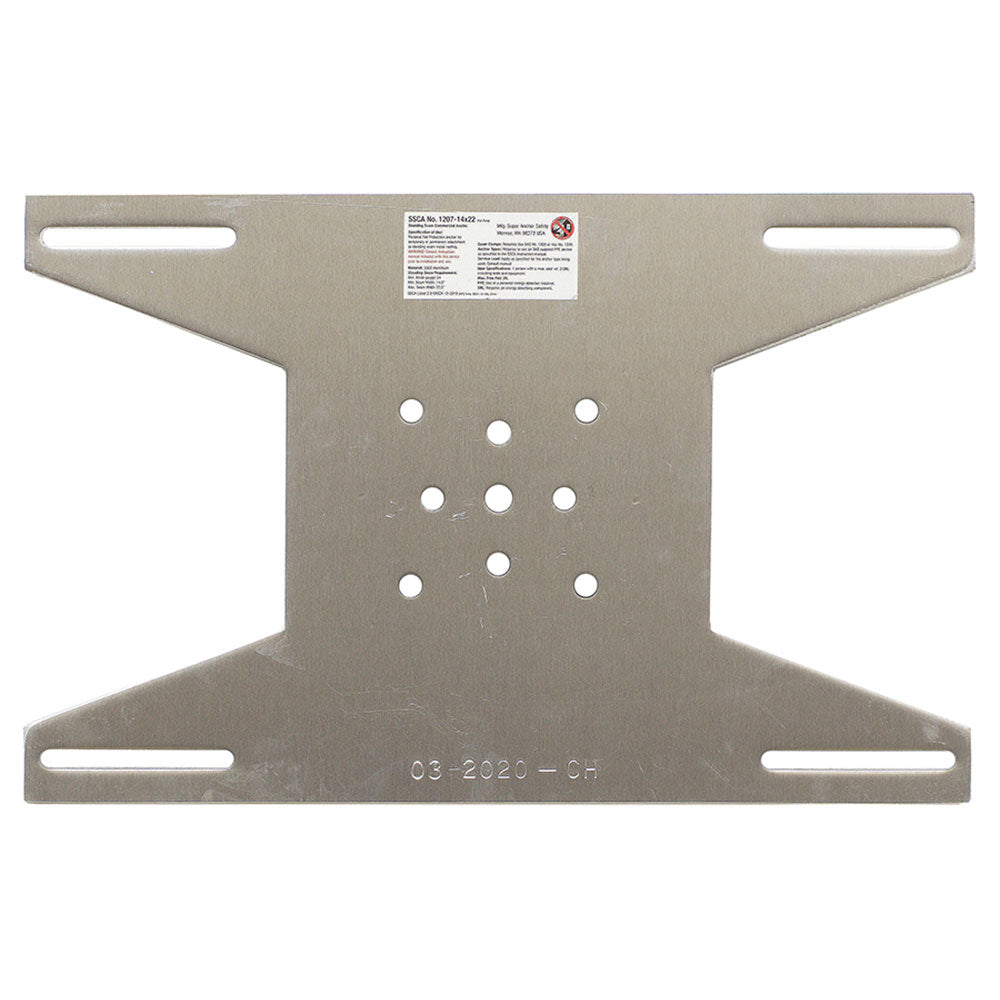

| Medium Base Plate | 14” up to 22” |
| Large Base Plate | 18” up to 24” |
** Min. height 3/4” snap-lock panel seams (Do NOT use with low profile snap-lock seams)
** Meets or Exceeds OSHA Fall Protection Anchor Standards when used according to manufacturer's instructions.
*** This item does not qualify for free shipping ***
*** Due to manufacturer restrictions, we are unable to ship this item outside of the United States. ***
